Product characteristics:

1. Connection method: Quick plug design, easy to operate, quick insertion and removal.
2. Protection level: IP65， Dustproof and waterproof, suitable for outdoor and industrial environments.
3. Material Science:
4. Shell: High temperature resistant PVC, UV resistant, wear-resistant.
5. Contact: Copper alloy, plated with gold or tin to ensure conductivity and corrosion resistance.

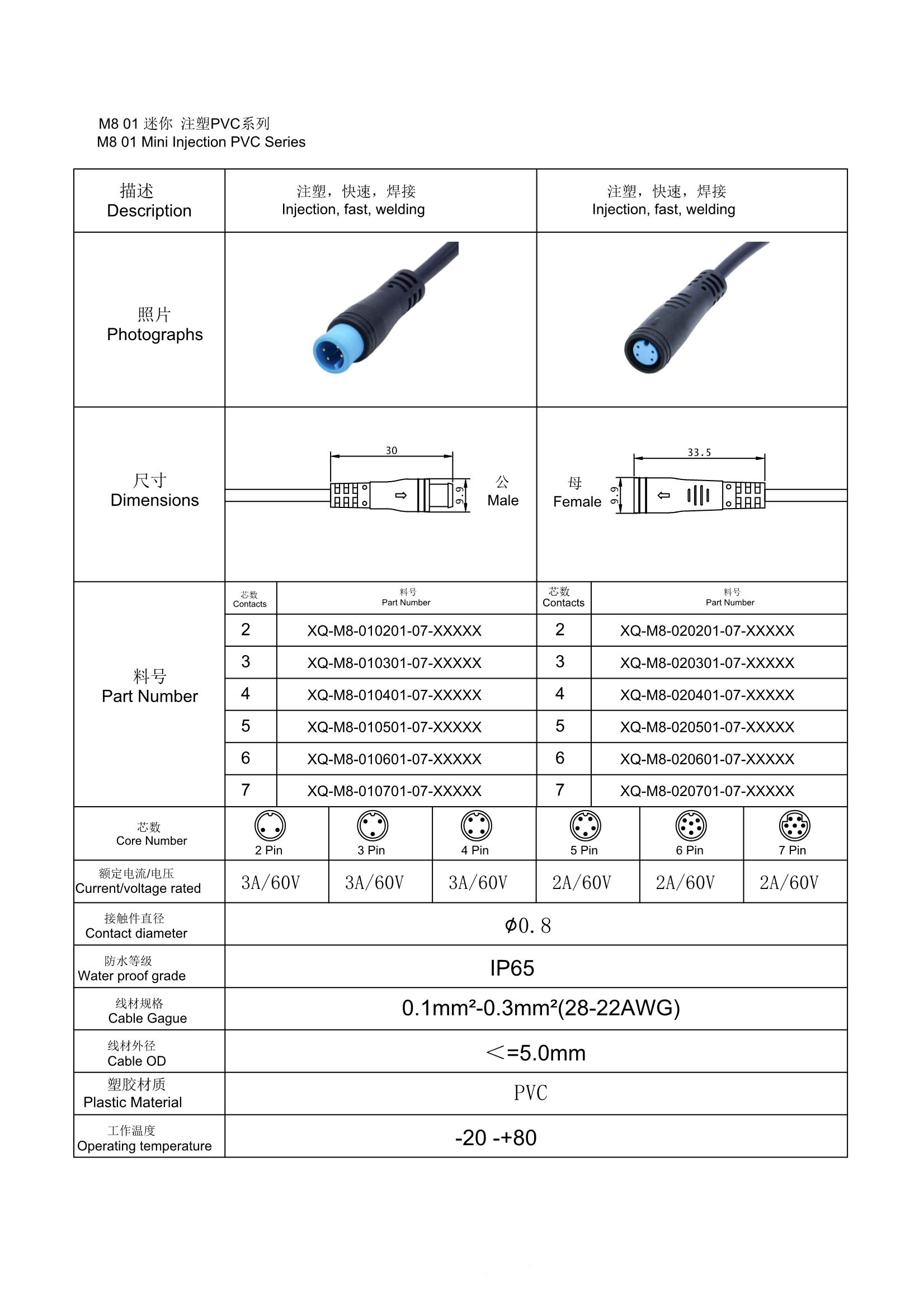

6. Optional specifications:
7. Needle count: 2, 3, 4, 5, 6 needles are optional.

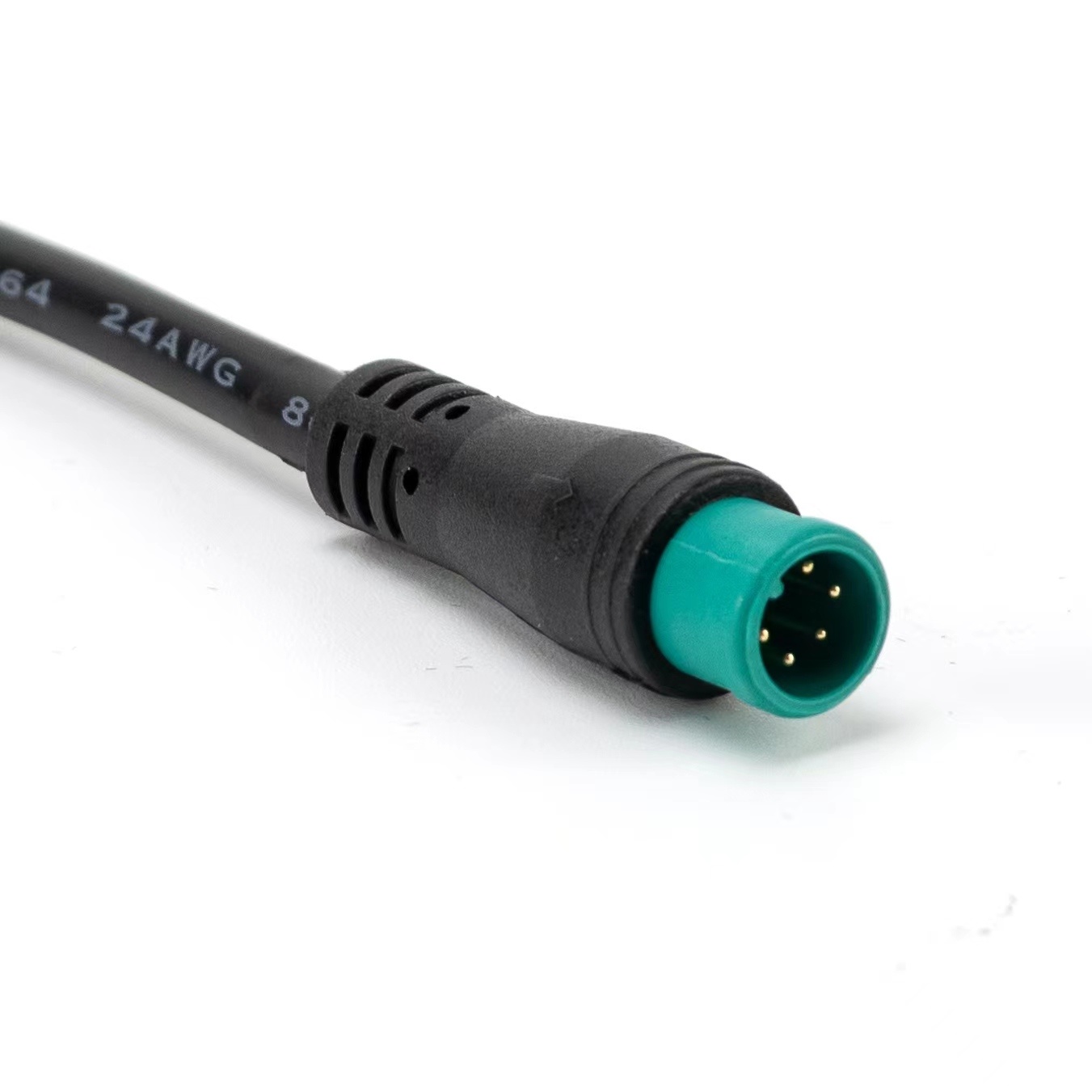

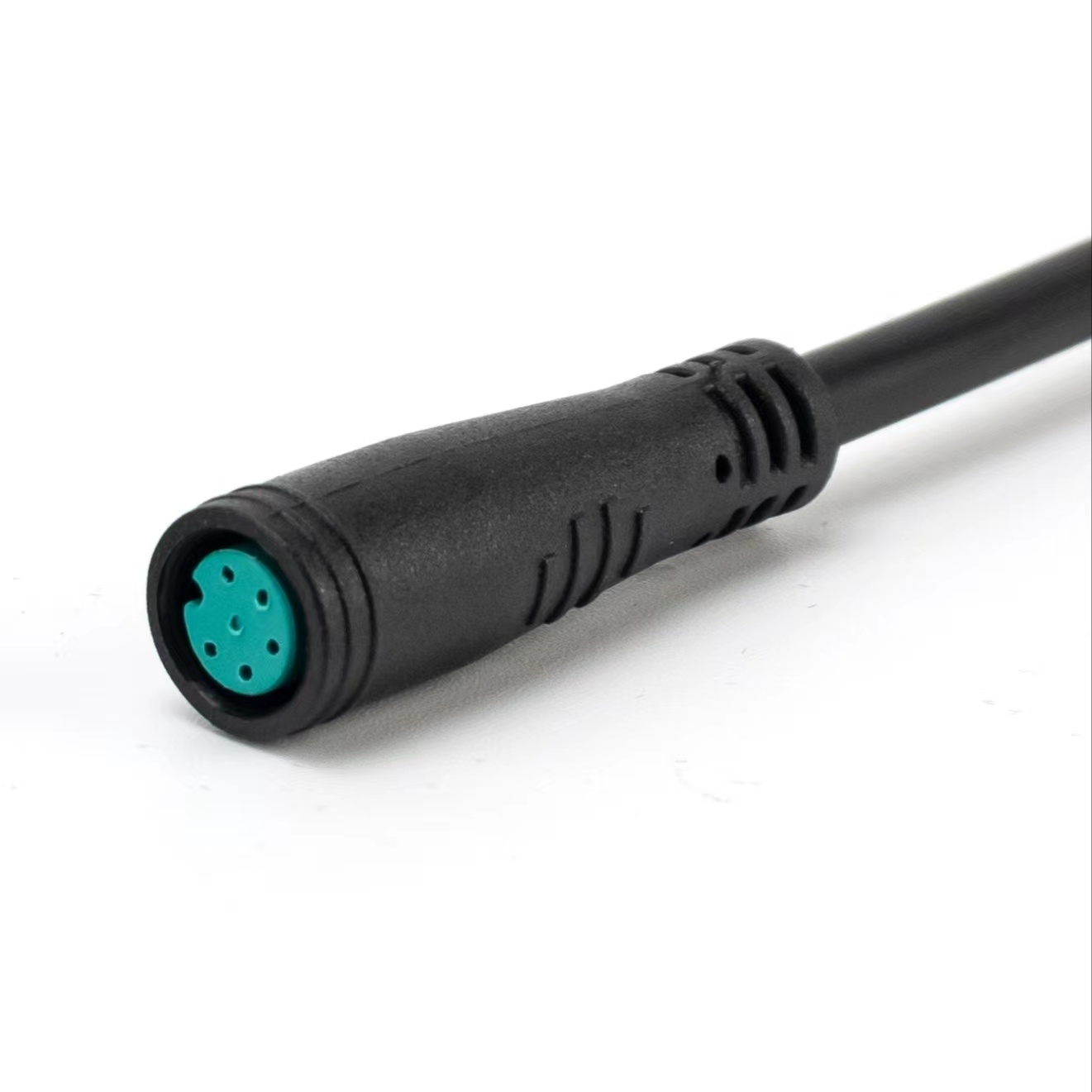

8. Interface: male/female, straight/curved.
9. Rated parameters:
10. Voltage: 30V~250V AC/DC (depending on the model)
11. Current: 1.5A~3A
12. Cable specifications: Supports cable diameters ranging from 3.5mm to 6.5mm, making it convenient for different wire applications.
13. Installation method: Welding or thread locking to ensure a secure and reliable connection.
14. Temperature range:- 20 ° C~+80 ° C, meeting various working environment requirements.
15. Certification: Compliant with CE and RoHS standards (some models have passed UL certification).

Precautions:

1. Avoid violent operations during insertion and removal to prevent damage to the sealing ring.
2. Long term exposure to ultraviolet radiation may affect the lifespan of PVC, and it is recommended to choose higher protection models (such as IP67) for outdoor use.
3. Ensure that the number of pins on the plug matches the number of pins on the socket to avoid mismatches.
