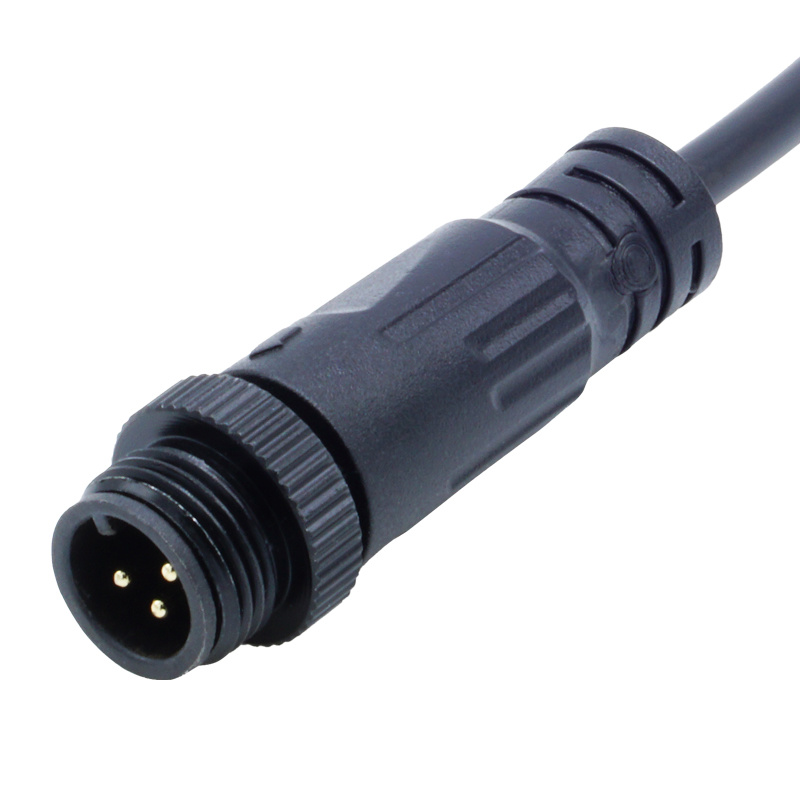

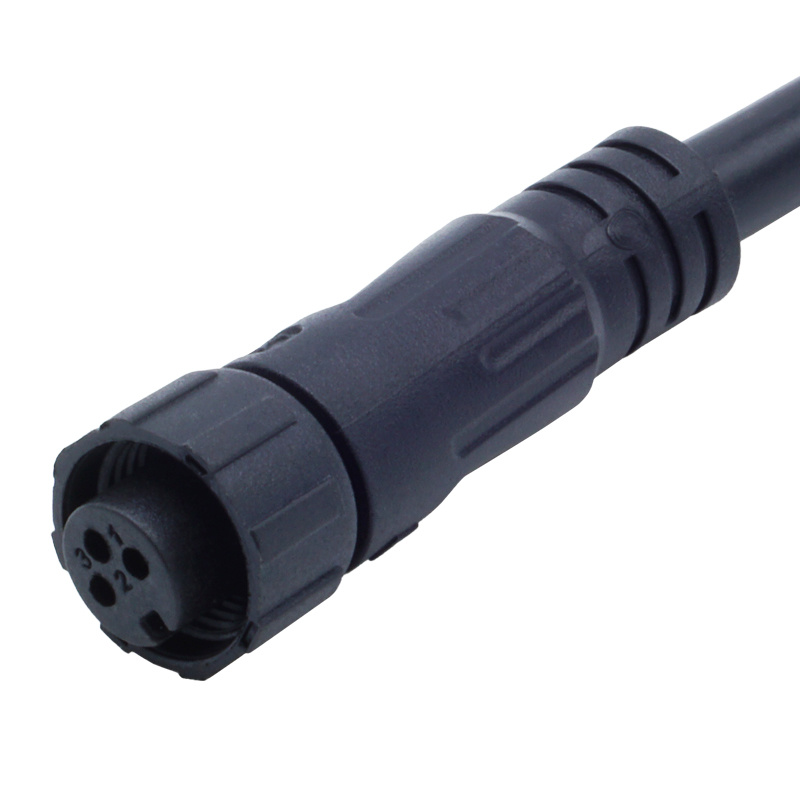

M12 injection molded waterproof connector is a circular connector widely used in industrial automation, sensors, instruments and other fields, with high protection level and durability.
Product Description
| Application: | LED Lighting | Color: | Black |
| Contact Resistance: | <0.02Ω | Insulation Resistance: | >100MΩ |
| Material: | Plastic/PVC/Nylon | Package: | 100pcs/bag |
| Product Name: | M12 Waterproof Cable Connector | Protection Level: | IP67 |
| Rated Current: | 5-10A | Rated Voltage: | 250V AD/CD |
| Size: | 2.5mm | Temperature Range: | -25℃~85℃ |
| Wire Range: | 0.3-2.5mm² | Withstand Voltage: | AC1500V/min |
| Highlight: | M12 IP67 Waterproof Connector, Male Female Waterproof Cable Connector, Outdoor LED Waterproof Connector | ||
Selection suggestions:
Confirm pin count: 3 pins (power supply), 4 pins (signal/Ethernet), 8 pins (high-speed communication)
Confirm code: compatible with the device, commonly used as A code
Confirm cable length and diameter
Installation method: panel/perforated installation, or on-site assembly
Material requirements: Metal casing or stainless steel material is recommended for outdoor/corrosive environments
Do you need shielding? It is recommended to use shielded cable connectors for communication applications

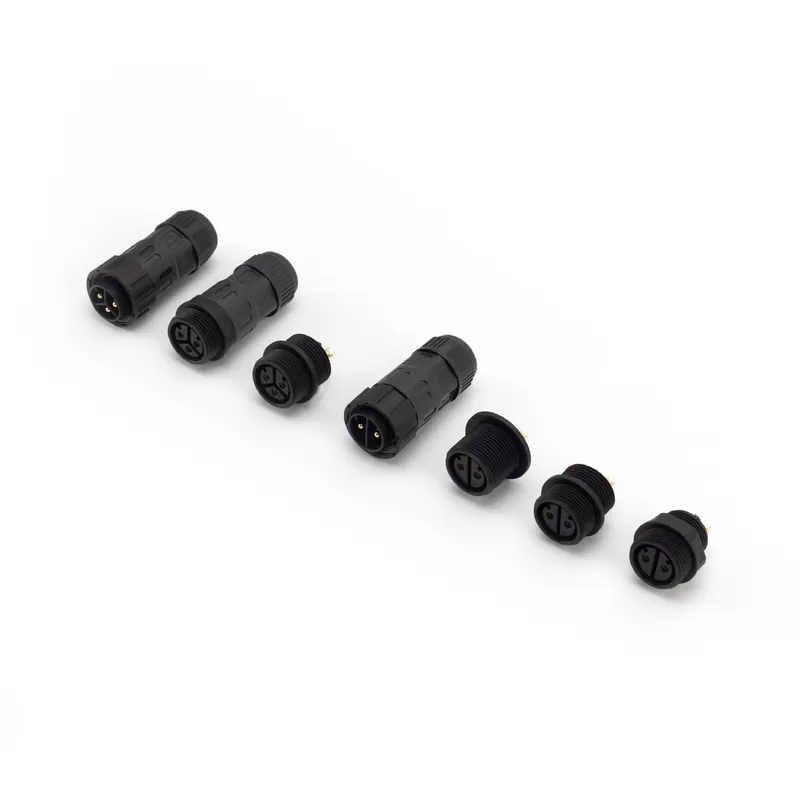

Common Types:

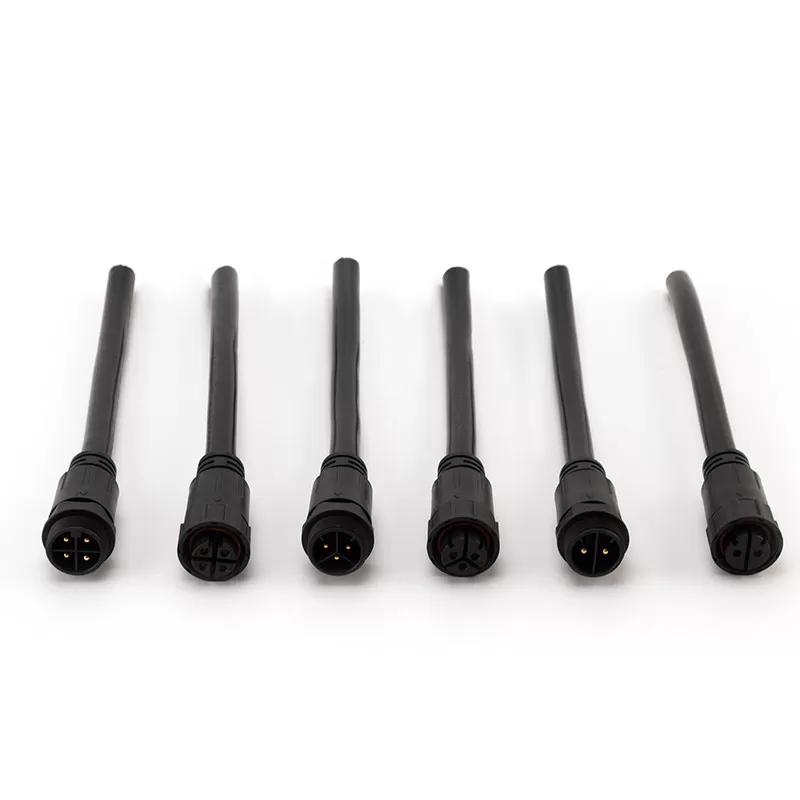

1. Plug and play with wired finished product, commonly 1m/2m/5m in length

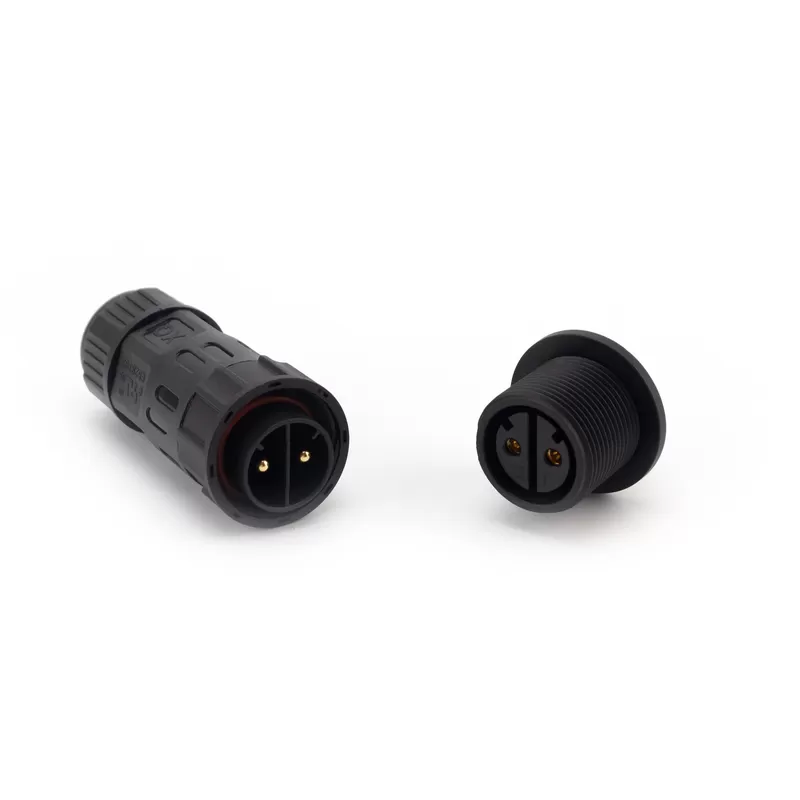

2. Panel mounted type installed on the device casing, providing plug and unplug interfaces

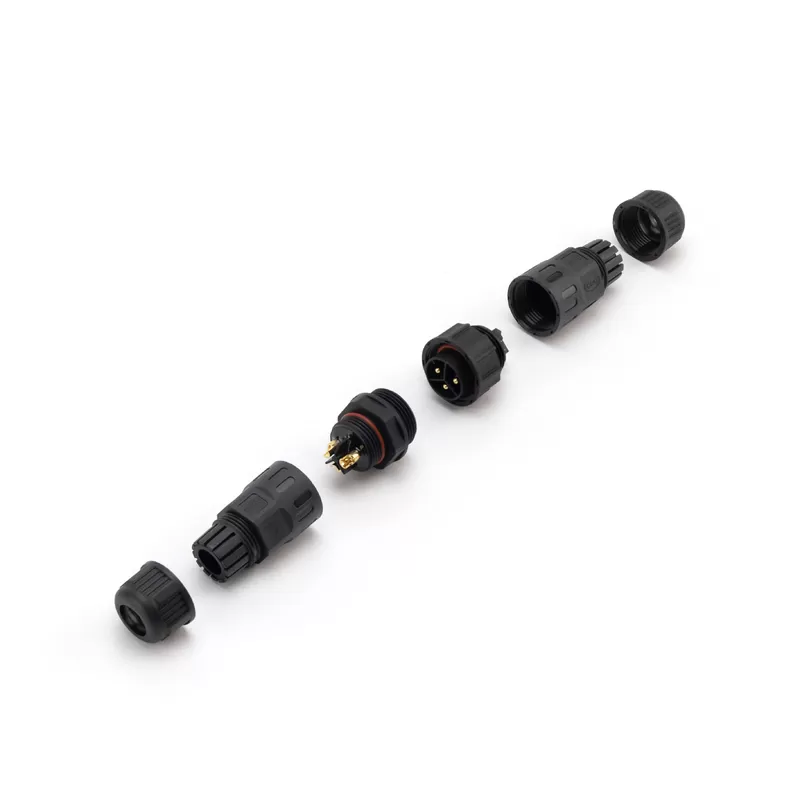

3. On site assembly type is convenient for on-site wiring and maintenance

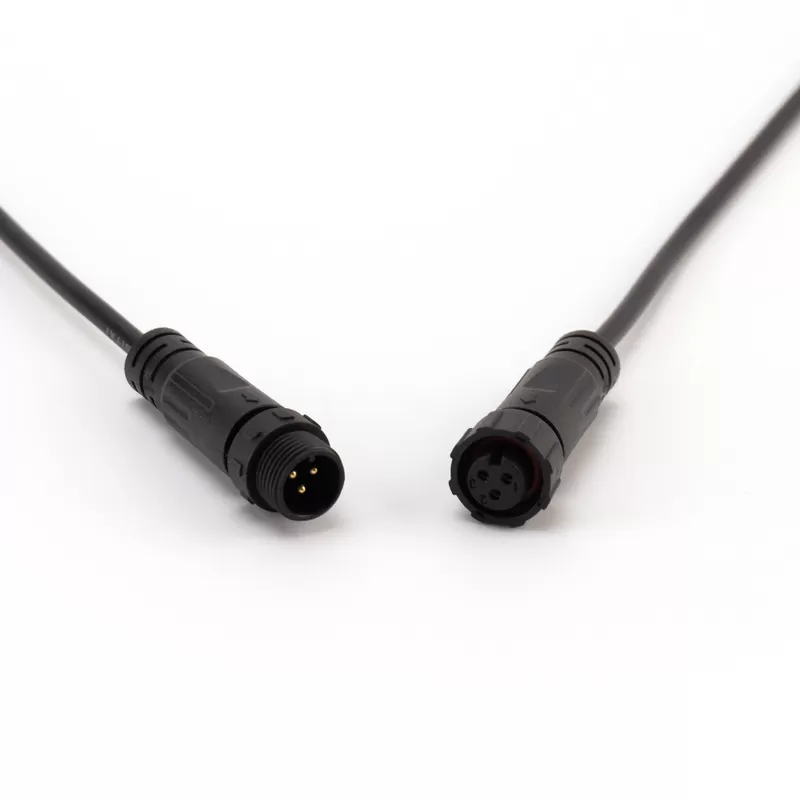

4. Double headed extension type M12 docking, used for signal/power extension

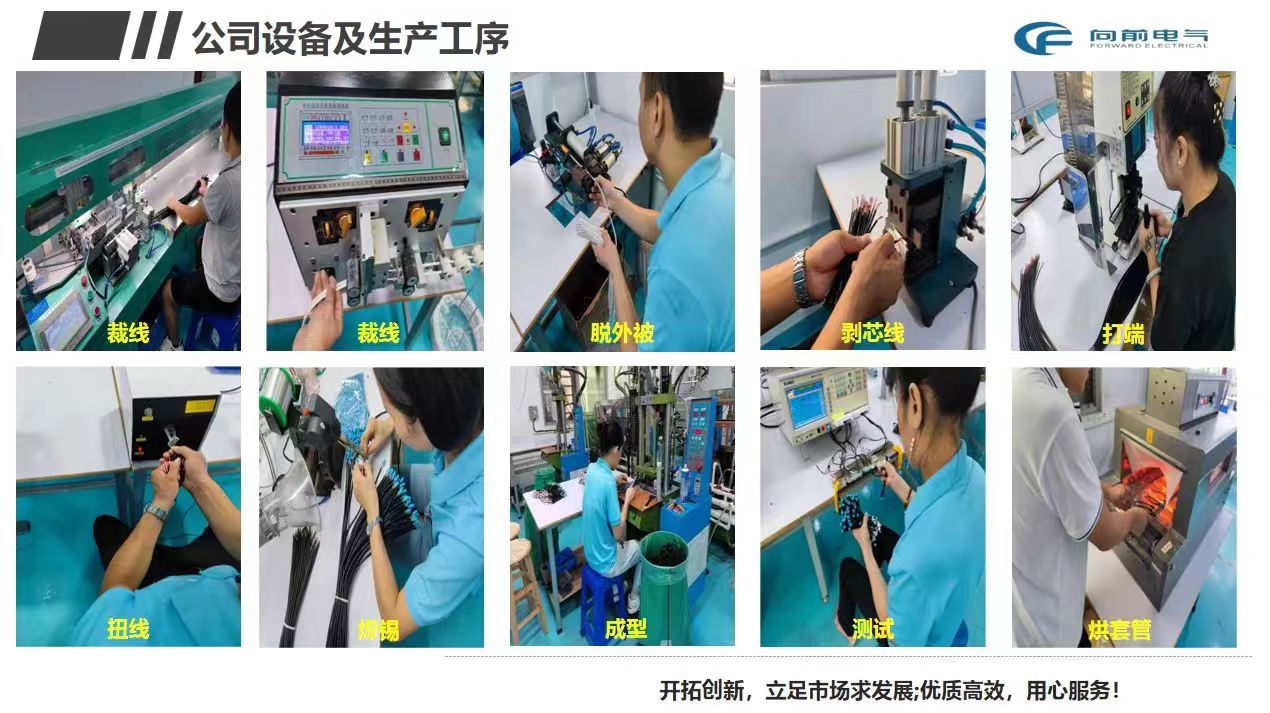

Workshop:
